ISUZU 4 x 2 FVR Fire Rescue Vehicles 6000L Water / Foam Tank For Petrochemical Industry

Product Categories

Hubei Suny Automobile And Machinery Co., Ltd

Contact Now

ISUZU 4 x 2 FVR Fire Rescue Vehicles 6000L Water / Foam Tank For Petrochemical Industry

Name: ISUZU 4 x 2 FVR Fire Rescue Vehicles 6000L Water Foam Tank For Petrochemical Industry
Brand: SUNY
Price: 55000 USD

Buy cheap ISUZU 4 x 2 FVR Fire Rescue Vehicles 6000L Water / Foam Tank For Petrochemical Industry product

Brand Name : SUNY

Model Number : SY5152XFSC

Certification : CCC, ASME, BV, SGS, etc

Place of Origin : China

MOQ : 1 unit

Price : USD55000 /set- USD85000/set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 200 set per month

Delivery Time : 15-25 working days

Packaging Details : Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc

Chassis brand/ model : ISUZU/ FVR34J2

Drive : 4X2

Tank material : Q235

Dimension : 8105X2480X3365 mm

Engine : 6HK1-TC

Wheel base : 4500 mm

Capacity : 5000L,6000L,

Tank demension : 3450X1350X1180mm

G.V. W : 15640KGS

Contact Now

ISUZU 4x2 FVR 5000L 6000L water and foam tank fire fighting truck

Description & application:

1- Water and foam fire truck water tank equipped with fire pump and foam mixed system, bubble gun, cannon, and etc., can spray water and foam mixture to put out the fire during extigushing. It is specially suitalbe in petrochemical industry, power plants and valuable equipment instruments, it is the necessaary fire truck for petrochemical enterprises, oil terminals, airport and city fire extigushing field.
3- There are Dry powder fire truck and Ladder fire truck optional

Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.

Specifications:

ISUZU 4x2 FVR 5000 L 6000 L water and foam tank fire fighting truck

Product

Fire truck

Vehicle

description

Overall dimensions(mm)

8105*2480*3365

GVW (kg)

15640

Mass in working order(kg)

9690

Rated loading capacity(kg)

5500

chassis

parameters

Chassis mod

FVR34J2

Fact cubage(L)

5500

Water tanker internal dimensions

3450*1350*1180

Approach/Departure angle(°)

26/13

F/R overhang(mm)

1335/2160

Wheel base(mm)

4500

F/R track base(mm)

1960/1855

Traction system

4*2

Number of axles

F/R axle-load(Kg)

5640/10000

Spring plate

9/14

Braking system

Air braking

Tire specification

10.00-20

Number of tires

6+1

Electric system

24v

Allowable passengers in cab

3+3

Air-conditioner

optional

Engine

Engine model

6HK1-TC

Type of fuel

Diesel

Exhaust(ml)

7790

Rated Power(kw)

191

Horse power

260

Operation control system

Steering wheel

Max speed(km/h)

Manufacturer

Qingling Motors Co., LTD

Emission standard

EURO 3

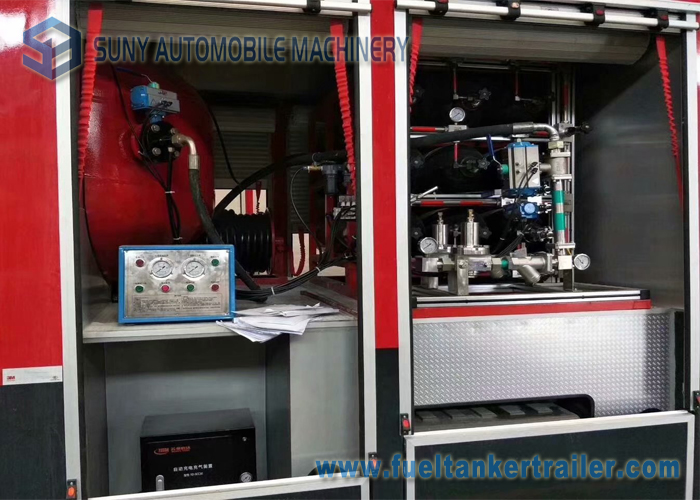

Equipment

Middle and low pressure pump : CB20.10/30.60

Flow:middle pressure 30L/S low pressure 60L/S

Pressure: middle pressure 2.0MPa low pressure 1.0MPa

PL48 Fire Pump Flow: 48L/S

Pressure: 1.0~1.2MPa

Fire distance (water):>65m

Production cycle

15-20 days
